Learning objectives

Learn how to generate an html/pdf report using Rmarkdown and Rstudio

What is R Markdown?

R Markdown provides a means of combining executable R code, code output and textual content in a single document. This documents can then be used to create report in a variety of different formats, such as PDF, HTML or even Word. R Markdown can be used to create static reports or slides.

The session will provide a brief introduction to R Markdown, including how to create a new R Markdown document, how to add text and images, how to insert R code chunks, and how to render the document to create a report.

More detailed materials can be found here.

Packages for this session

We will be using the following packages in this session. If you don’t have them installed, you can do so using the install.packages() function.

library(tidyverse)
library(knitr)
library(kableExtra)
library(DT)
library(patchwork)

knitr is the package that is used to convert R Markdown documents to various output formats. It is also used to control how the output of R code is rendered in the document, and its kable function is used to create tables in R Markdown documents. Note that you don’t need to load the knitr package explicitly, as it is loaded automatically when you create an R Markdown, but if you want to use the kable function you may wish in order not to have to type knitr::kable() every time.

The kableExtra package extends the functionality of knitr, providing additional functions for formatting tables. The DT package provides a way to create interactive tables in R Markdown documents. The patchwork package provides a way to combine multiple ggplots into a single figure.

Creating an R Markdown document

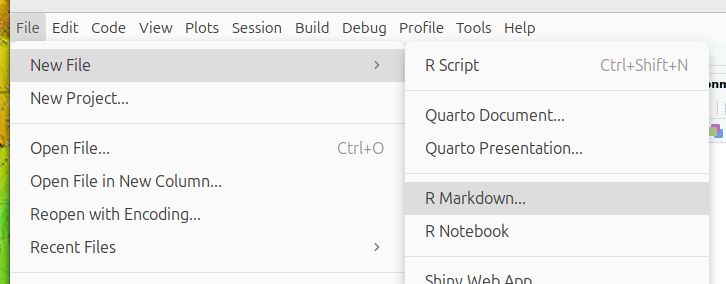

We can start a new R Markdown document in RStudio from the menu bar:

File –> New File –> R Markdown...

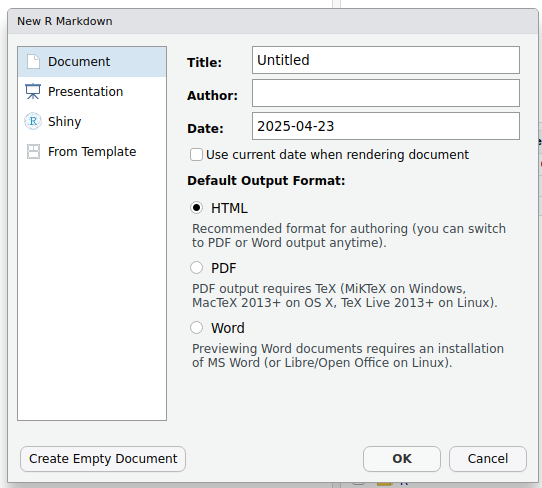

This will bring up the following diaglogue box:

Change the title to something meaningful, add your name as the author if you wish, select the type of document you want the markdown to generate (this can be changed later) and then click OK to create a starter script.

Save the starter script as MyFirstRmarkdown.Rmd.

The basic components of an R Markdown

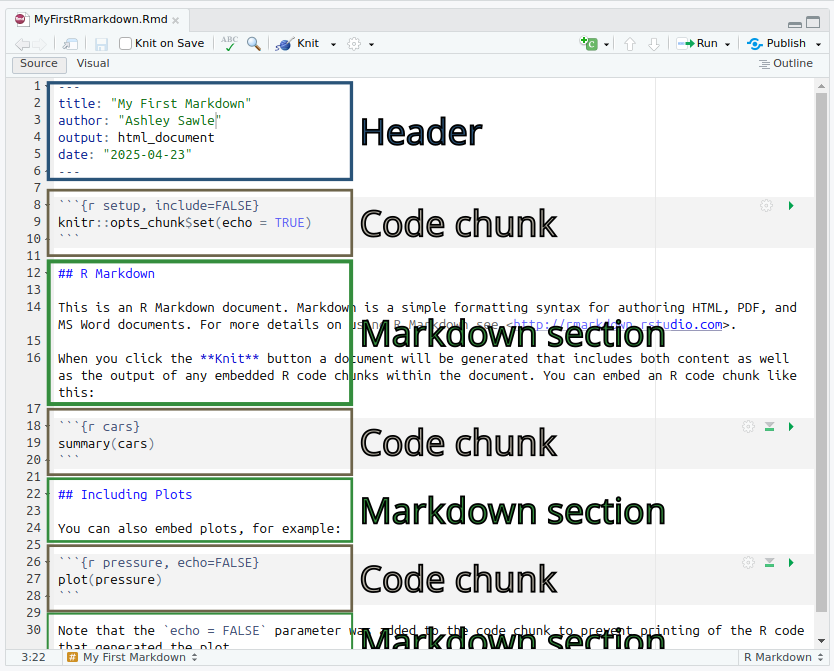

An R Markdown file is made up of 3 components:

Header - metadata and instructions related to rendering the document
Markdown sections - Text, images, links, tables, lists to be included in the report
R code chunks - Code chunks to be executed and the output included in the report

You may have noticed that opening an R Markdown (.Rmd) document caused a few new icons to appear on the toolbar above the script window. For now just click:

This will convert (or render) the document to html format.

In this session we will generate an HTML file, however, it is possible to generate a range of different document types, and these are extensible to link multiple documents into “books” or websites. We’ll keep it simple for this introduction. Let’s look at each section in a little more detail.

Header

The R markdown document starts with a header in YAML format.

The header begins and ends with a line with three hyphens (---). The only required field is the output field, which defines what type of document is to be created. Other fields either define metadata, e.g. author or title, or they contain information related to the rendering of the output document, e.g. whether to include a table of contents or not (we’ll look at this later).

In the example below the title, author, output and date have been specified

---
title: "My First Markdown"
author: "Ashley Sawle"
output: html_document
date: "2025-04-23"
---

Markdown sections

Markdown is a markup language that allows you to add formatting to text, such as bold or italics. Unlike in a word processor such as MS Word, the effect of formatting is not visible in a markdown (.md) document, only once the document is rendered to create the output. Markdown uses specific syntax to add formats to the text. The benefit of this is Markdown is lightweight and platform independent.

R Markdown combines normal Markdown for text and images with separate chunks thank can contain executable R code, the outputs of which can be included in the document.

The full documentation of the Markdown syntax can be found here. Here we will concentrate on the most commonly used elements.

Inline text formatting

Seeing as we have already mentioned bold and italics, let’s see how they work. To apply inline formatting for text, we simply surround the text we want to format with a particular set of symbols. For example to render some text in italics we surround the text with either asterisks or underscores:

This is *italics* or This is _italics_ → This is italics

Other possible inline formatting syntax includes:

Double asterisks/underscores for bold:

This **is bold** or This __is bold__ → This is bold
Tilde (~) for subscript:

This is ~subscript~ → This is _subscript
Caret (^) for superscript:

This is ^superscript^ → This is ^superscript
Double tilde (~) for strikethrough:

~~This is strikethrough~~ → ~~This is strikethrough~~
Backticks (`) for “code” font:

This is `code` → This is code

Note that any amount of text can come between the two sets of syntax.

Headings

Section headings are created using the # symbol (technically called an octothorp!) at the beginning of the line. The top level is the document title and uses one #:

# Section

Using 2 creates a section header:

## Sub-section → Sub-section

Increasing the number of # symbols creates deeper and deeper levels of sub-sections.

# Section
# Sub-section
## Sub-sub section
### Sub-sub-sub section
#### Sub-sub-sub-sub section

Adding a table of contents

The section headers can be automatically added to a table of contents. As this is “instructions related to rendering the document”, we need to add this information to the head yaml:

output:
  html_document:
    toc: true

By default all headings up to level 3 headings are displayed in the table of contents. You can adjust this by specifying toc_depth. Also, the table of contents will default to a “static” list under after title matter of the document. With html format we could instead have a “floating” (and collapsible) table of contents that stays on view on the left of the document body as the document is scrolled. To implement these we add two additional lines to the yaml:

output:
  html_document:
    toc: true
    toc_depth: 4
    toc_float: true

Tab sets

A neat thing to do with headers and sub-headers is to create tab sets. If we add the syntax {.tabset} after a header, all subsequent sub-headers on the next level down will be rendered as tabs, rather than just consecutive text. For example:

### Some different formattings {.tabset}

The following tabs show different inline formatting syntax.

#### Bold

Bold is achieved with double asterisks e.g. `**bold**` is rendered as **bold**.

#### Italics

Italics is achieved with a single asterisk e.g. `*italics*` is rendered as *italics*.

#### Strikethrough {.unlisted .unnumbered}

Strikethrough is achieved with tilde e.g. `~strikethrough~` is rendered as
~Strikethrough~.

### Next section

The tab set ends when we return to a higher header level.

is rendered as:

Some different formattings

The following tabs show different inline formatting syntax.

Bold

Bold is achieved with double asterisks e.g. **bold** is rendered as bold.

Italics

Italics is achieved with a single asterisk e.g. *italics* is rendered as italics.

Strikethrough

Strikethrough is achieved with tilde e.g. ~strikethrough~ is rendered as _{Strikethrough}.

Next section

The tab set ends when we return to a higher header level.

NOTE: The border and background colour have been added in order to differentiate the output rendered from the markdown above from the main text of this document. This is not part of the default output.

Line breaks

Two consecutive lines of body text in the R Markdown document will be read as as the same paragraph and concatenated. To insert a line break between two lines either add two (or more) spaces or a backslash at the end of the first line. For example:

This is the first line
There are no spaces after the end of the previous line

is rendered as:

This is the first line There are no spaces after the end of the previous line

where as:

This is the first line\
There are no spaces after the end of the previous line

is rendered as:

This is the first line
There are no spaces after the end of the previous line

Lists

We can create both unordered lists (bullet points) or ordered lists (numbered).

Unordered lists

To create an unordered list using *, - or + (all do the same thing). You can created nested lists by indenting by 4 spaces.

* Cricket
* Rugby
* Football
    * English Premier League
    * La Liga
    * Serie A
* Basketball
* Volleyball
* Hockey

is rendered as:

Cricket
Rugby
Football
- English Premier League
- La Liga
- Serie A
Basketball
Volleyball
Hockey

Ordered lists

Ordered lists can be created using a number for numeric bullets, a lower case letter for a, b, c…etc., or is for roman numerals. Again indentation can be used to create nested lists. For example

1. Cat
2. Ferret
3. Dog
    a. Terriers
        i.  Jack Russell
        ii. Airedale
        iii. Yorkshire
        iv. West Highland
    b. Labradors
    c. Spaniels
4. Goldfish

is rendered as:

Cat
Ferret
Dog
1. Terriers
  1. Jack Russell
  2. Airedale
  3. Yorkshire
  4. West Highland
2. Labradors
3. Spaniels
Goldfish

It isn’t actually necessary to use particular numbers/letters/roman numerals in any particular order - the correct order for the bullets will be determined when the document is rendered. So in fact the following would results in the same output:

1. Cat
1. Ferret
5. Dog
    a. Terriers
        i.  Jack Russell
        i. Airedale
        i. Yorkshire
        i. West Highland
    b. Labradors
    a. Spaniels
1. Goldfish

Links

As with a standard html web page, we can add hyperlinks, both to internal sections of the document or to external pages. The general format for creating a link is to surround the link text (what is displayed) with square brackets and then follow this with the link itself (internal tag or external page) surrounded by round backets:

[This is the text](this_is_the_link)

External links

External links can either be to another html document on the same file system or to a URL elsewhere on the internet.

For example we can link to week 6 documentation, which is in the same folder as this document:

[week 6 document](week6.html) → week 6 document

Alternatively, we can link to pages elsewhere on the internet, e.g:

[Hadley Wickham's old R Markdown page](https://r4ds.had.co.nz/r-markdown.html) → Hadley Wickham’s old R Markdown page

Internal links to sections

We can link to any section of the current document, but first we need to add a tag to the header for that section. For example, if we want to be able to link to the top of this Markdown section, we would add a tag to the header like this:

## Markdown sections {#markdown-header}

Then to link to this section in text we would use:

[link to header](#markdown-header)

e.g. Follow this link to get to the top of this section

Inserting images

Images can be inserted into the document in a number of ways, but the simplest uses a similar syntax to links, but this time preceded by an exclamation mark:

![optional caption](link_to_image)

The link can be a URL to an image elsewhere on the internet or a relative path to an image on the same file system.

![Figure 1: A cheetah!](images/Rmarkdown_cheetah.png)

inserts the image like this:

Figure 1: Cheetah

This does not give us much control over how the image is rendered. We can control the size by specifying the width in either absolute display pixels or the percentage of the document width with the following syntax:

![Figure 1: Cheetah](images/Rmarkdown_cheetah.png){width=10%}

inserts the image like this:

Figure 1: Cheetah

![Figure 1: Cheetah](images/Rmarkdown_cheetah.png){width=150px}

inserts the image like this:

Figure 1: Cheetah

Tables

Most tables to appear in your documents will be data generated by R code chunks, however, on rare occasions we may want to manually include a table. This can be achieved using the following syntax.

| Name        | Band        |
| ----------- | ----------- |
| Mick        | Stones      |
| John        | Beatles     |
| Paul        | Beatles     |

is rendered as:

Name	Band
Mick	Stones
John	Beatles
Paul	Beatles

Table alignments can be done using the following syntax:

| Name  | Band    | Instrument |
| :---  | :----:  |       ---: |
| John  | Beatles | Guitar     |
| Paul  | Beatles | Bass       |
| Keith | Stones  | Guitar     |

This is rendered as:

Name	Band	Instrument
John	Beatles	Guitar
Paul	Beatles	Bass
Keith	Stones	Guitar

Blockquotes

A block quote is often used when we want to quote a piece of text from another document. This is done by using the > symbol at the beginning of the line. For example:

> "The R language is a free software environment for statistical
> computing and graphics supported by the R Foundation for Statistical
> Computing. The R language is widely used among statisticians and
> data miners for developing statistical software and data analysis."
> (Wikipedia)

is rendered as:

“The R language is a free software environment for statistical computing and graphics supported by the R Foundation for Statistical Computing. The R language is widely used among statisticians and data miners for developing statistical software and data analysis.” (Wikipedia)

Code blocks

We have seen that we can highlight text as “code” inline using backticks `code`. This is useful for short snippets of code, but if we want to add a longer piece of code as part of the documentation (i.e. not code that we want to run, but just to show the reader), we can use a code block. This is done by surrounding the code with three backticks. For example:

```
metabric %>%
    group_by(ER_status, Cancer_type) %>%
    summarise(ERBB2_mean = mean(ERBB2)) %>%
    top_n(n = 1)
```

This will be rendered as:

metabric %>%
    group_by(ER_status, Cancer_type) %>%
    summarise(ERBB2_mean = mean(ERBB2)) %>%
    top_n(n = 1)

For code that we actually want to run, we will use R code chunks.

R code chunks

R code that we want to run during the rendering of document should be placed in an R code chunk. These sections of R code are executed when the document is rendered. The results of the code may then be included in the output document. This allows us to dynamically generate tables, figures and other output based on the data and code in the document. This is a powerful feature of R Markdown, as it allows us to create reproducible reports that can be easily updated with new data or code changes.

The R code chunk is created by surrounding the code with three backticks and adding {r} after the first three backticks. For example:

```{r}
x <- 10
y <- 20
x + y
```

Generates the following in the output:

x <- 10
y <- 20
x + y

## [1] 30

By default the code is written to a code chunk (we can change this - see below). and any output from the code is written underneath. The output might include anything that would normally be written to the console (such the result of x + y here), tables, plots, or even warnings or errors.

Creating code chunks

To create a code chunk, you can use the insert icon on the toolbar:

or you can use the keyboard shortcut Ctrl + Alt + I (Windows) or Cmd + Option + I (Mac), or you can type the code chunk manually as shown above. The code chunk will be created at the location of the cursor in the document.

The empty code chunk will look like this:

You’ll notice a few icons on the right in the toolbar above the code chunk. These are used to run the code chunk, run all code chunks above the current chunk, and to manage chunk options (see below).

Running code chunks

To run a code chunk, you can click the green arrow icon in the toolbar above the code chunk, or you can use the keyboard shortcut Ctrl + Shift + Enter (Windows) or Cmd + Shift + Enter (Mac). This will run the code in the chunk and display the output below the chunk.

Chunk options

We can apply a number of options to code chunks to control how they are rendered in the output document. There are a large number of possible options the most common of which are:

echo = FALSE - do not display the code in rendered document, but do display the results of the code.
include = FALSE - do not display either the code or the results in the document when it is rendered. The code will still run and so any changes it makes to the environment (new objects or changes to existing objects) will be available for subsequent code chunks.
message = FALSE - do not display any messages that are generated by the code chunk in the rendered file.
warning = FALSE - do not display warnings that are generated by code chunk in the rendered file.
eval = FALSE - do not run the code in the chunk, but display the code in the rendered document.
cache = TRUE - cache the results of the code chunk so that it does not need to be re-run every time the document is rendered. This can speed up rendering time for large code chunks or when the code takes a long time to run. The cache is stored in a folder called cache in the same directory as the R Markdown file.
fig.width and fig.height - set the width and height of figures generated by the code chunk.
fig.cap - set the caption for the figure generated by the code chunk. This will be displayed below the figure in the rendered document.

A thorough guide to all the avaialable chunk options (and more knitr options) can be found here.

Chunk label

We can specify a label for the code chunk by adding it after the {r} in the code chunk header:

```{r label}
```

This has a number of uses. In RStudio you should see a menu in the bottom left of the script panel:

This gives us a way to navigate through the document and includes any headers and code chunks with labels. This is very useful for long documents.

The “setup” chunk

Best practice is to create a “setup” chunk at the beginning of the document. This chunk should include all the packages that you will need to run the the code in the document.

The “setup” chunk will also include any options that you want to set for the entire document. For example, you might want to set the default chunk options for the entire document to not display code. You can do this using the knitr command opts_chunk$set(). For example the set up chunk might look like this:

```{r setup, message=FALSE}
library(tidyverse)
library(patchwork)
library(knitr)
library(kableExtra)
library(DT)
knitr::opts_chunk$set(warning = FALSE, echo = TRUE)
```

The opts_chunk$set() function sets the default options for all chunks, in this case to always display the code and not display any warnings. You can override these options in individual chunks by specifying the options in the chunk header.

It’s good idea to set message = FALSE for the setup chunk so that it does not print all the package startup messages in the rendered document.

A note on the working directory

When evaluating code chunks, the default working directory is the location of the R Markdown file. This means that any paths to files you wish to read/write need to be relative to that directory. If you wish to use a different working directory, you can set this in the setup chunk using the following code:

projDir <- "/Full/path/to/your/project/directory"
opts_knit$set(root.dir = projDir)

Tabular output

By default, R Markdown will display tables in basically the same way as they would be displayed in the console. For example, if we display the first few rows of the mtcars dataset we get the following:

smallTable <- mtcars %>%
    rownames_to_column("car") %>%
    select(car, mpg, cyl, wt) %>%
    slice(1:5)
smallTable

##                 car  mpg cyl    wt
## 1         Mazda RX4 21.0   6 2.620
## 2     Mazda RX4 Wag 21.0   6 2.875
## 3        Datsun 710 22.8   4 2.320
## 4    Hornet 4 Drive 21.4   6 3.215
## 5 Hornet Sportabout 18.7   8 3.440

Basically imformative, but not very pretty. There are a lot of things we can do to make the table a more functional and look better in our report. The simplest is to use the kable() function from the knitr package.

The `kable()` function

smallTable %>%
    kable()

car	mpg	cyl	wt
Mazda RX4	21.0	6	2.620
Mazda RX4 Wag	21.0	6	2.875
Datsun 710	22.8	4	2.320
Hornet 4 Drive	21.4	6	3.215
Hornet Sportabout	18.7	8	3.440

kable generates a simple table using the Markdown syntax that we saw previously. It can be used to control some basic aspects of the appearance of the table, including the number of digits displayed, the alignment of the columns, and the formatting of the table. For example, we can use the digits argument to specify the number of digits to display for each column. We can also use the align argument to specify the alignment of the columns.

smallTable %>%
    kable(digits = 2, align = "c")

car	mpg	cyl	wt
Mazda RX4	21.0	6	2.62
Mazda RX4 Wag	21.0	6	2.88
Datsun 710	22.8	4	2.32
Hornet 4 Drive	21.4	6	3.21
Hornet Sportabout	18.7	8	3.44

A comprehensive guide to the kable function can be found here.

There are a large number of other packages available to format tables in more sophisticated ways. There is a list of some of the most popular packages here.

Here we will look at two packages: kableExtra, which extends the formatting capabilities of kable, and DT, which provides a more interactive table format.

The `kableExtra` package

The package kableExtra replaces kable() with the function kbl() to display tables in R Markdown. We can then use various formatting commands to control the appearance of the table in much the same way as we add layers to a ggplot. The kableExtra package provides a number of functions that can be used to format tables, including kable_styling(), column_spec(), and row_spec().

smallTable %>%
    kbl() %>%
    kable_styling(bootstrap_options = c("striped", "hover")) %>%
    column_spec(column = 1, bold = TRUE, border_right = TRUE)

car	mpg	cyl	wt
Mazda RX4	21.0	6	2.620
Mazda RX4 Wag	21.0	6	2.875
Datsun 710	22.8	4	2.320
Hornet 4 Drive	21.4	6	3.215
Hornet Sportabout	18.7	8	3.440

As well as allowing us to control the formatting of the table ourselves, kableExtra also provides a number of pre-defined styles that we can use to quickly format our tables.

smallTable %>%
    kbl() %>%
    kable_classic(full_width = F, html_font = "Cambria")

car	mpg	cyl	wt
Mazda RX4	21.0	6	2.620
Mazda RX4 Wag	21.0	6	2.875
Datsun 710	22.8	4	2.320
Hornet 4 Drive	21.4	6	3.215
Hornet Sportabout	18.7	8	3.440

More details about all the fancy things you can do with kableExtra can be found here.

The `DT` package

The DT package provides a more interactive table format that allows us to sort, filter, search, and paginate the table. It also provides options to add buttons to export the table to CSV, Excel, or PDF format. The basic command is datatable(), which takes a data.frame as input and returns an interactive table.

longTable  <- mtcars %>%
    rownames_to_column("car") %>%
    select(car, mpg, cyl, wt)
longTable %>%
    datatable()

There are a lot of options available to control the appearance and functionality of the table. Extensive documentation is available here.

Much of the formatting is done using the options argument, which takes a list of options. The dom option controls the layout of the different elements, and the buttons option controls the buttons that are displayed. The pageLength option controls the number of rows displayed on each page.

The dom option is a string that specifies the layout of the table. The string can contain the following characters:

l - length changing input control (how many rows to display)
f - filtering input (search box)
t - table
i - table information summary (e.g. “Showing 1 to 10 of 57 entries”)
p - pagination control (next/previous buttons)
B - buttons (export buttons)
r - processing display element (loading indicator)

The order of the characters in the string determines the order in which the elements are displayed.

Let’s add custom column names to the table, remove the search box, change the number of rows displayed on each page, and add a button to export the table to CSV.

By ommitting the f character from the dom string, we remove the search box.

To add the export buttons, we need to add the buttons option to the options argument, but we also need to add the B character to the dom string and intruct the table to use the “Buttons” extension.

longTable %>%
    datatable(
        extensions = "Buttons",
        options = list(
            dom = "Btip",
            buttons = c("csv", "excel"),
            pageLength = 5),
        colnames = c("Car", "Miles per gallon", "Cylinders", "Weight")
    )

The DT R packages is a wrapper for the JavaScript library DataTables. Be careful when searching the web for information about DT that you are not looking at the JavaScript documentation. Also, be carefule not to confuse the DT package with the data.table package, which is a different package for fast data manipulation in R.

NOTE: Be wary of creating very large tables in R Markdown documents. The data in the table is all embedded in the final document when it is rendered. If you have a very large table resulting document can be very large.

Plots

If a code chunk generates a plot, the plot will be displayed in the output document.

```{r plot}
mtcars %>%
    ggplot(aes(x = mpg, y = wt)) +
    geom_point() +
    labs(title = "Scatter plot of weight vs miles per gallon",
         x = "Miles per gallon",
         y = "Weight") +
    theme_minimal()
```

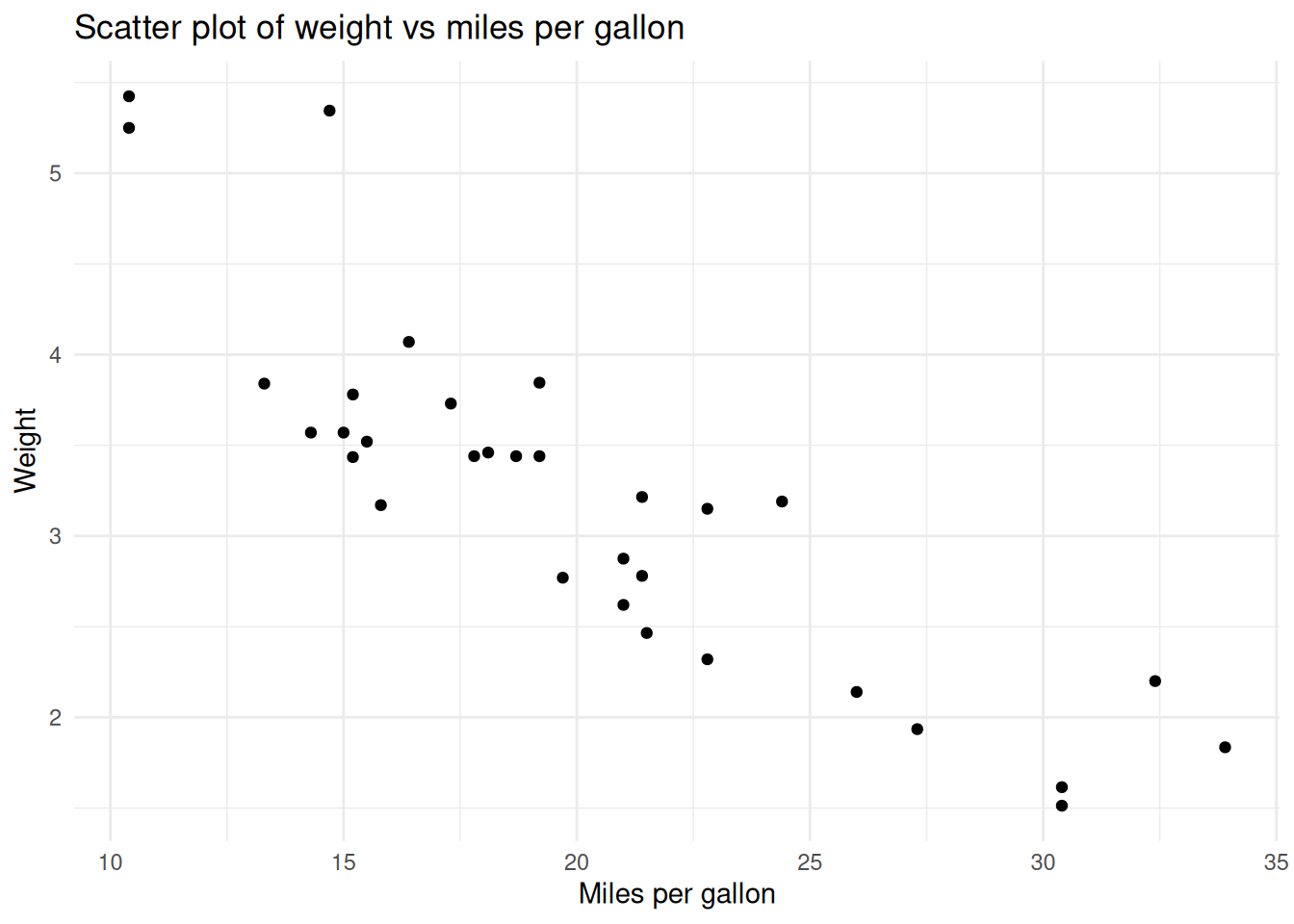

is rendered as:

mtcars %>%
    ggplot(aes(x = mpg, y = wt)) +
    geom_point() +
    labs(title = "Scatter plot of weight vs miles per gallon",
         x = "Miles per gallon",
         y = "Weight") +
    theme_minimal()

Using chunk options we can control the size of the plot in the document and add a caption to the plot.

The default size of the plot is 7 inches wide and 5 inches high. We can change the size of the plot using the fig.width and fig.height options.

Note that the caption can be specified as a string in the fig.cap option or using a variable that can be defined in the code chunk (or in a previous code chunk).

```{r plot2, fig.with=5, fig.height=3, fig.cap=figCap}
figCap <- "Scatter plot of weight vs miles per gallon"
mtcars %>%
    ggplot(aes(x = mpg, y = wt)) +
    geom_point() +
    labs(x = "Miles per gallon",
         y = "Weight") +
    theme_minimal()
```

is rendered as:

figCap <- "Scatter plot of weight vs miles per gallon"
mtcars %>%
    ggplot(aes(x = mpg, y = wt)) +
    geom_point() +
    labs(x = "Miles per gallon",
         y = "Weight") +
    theme_minimal()

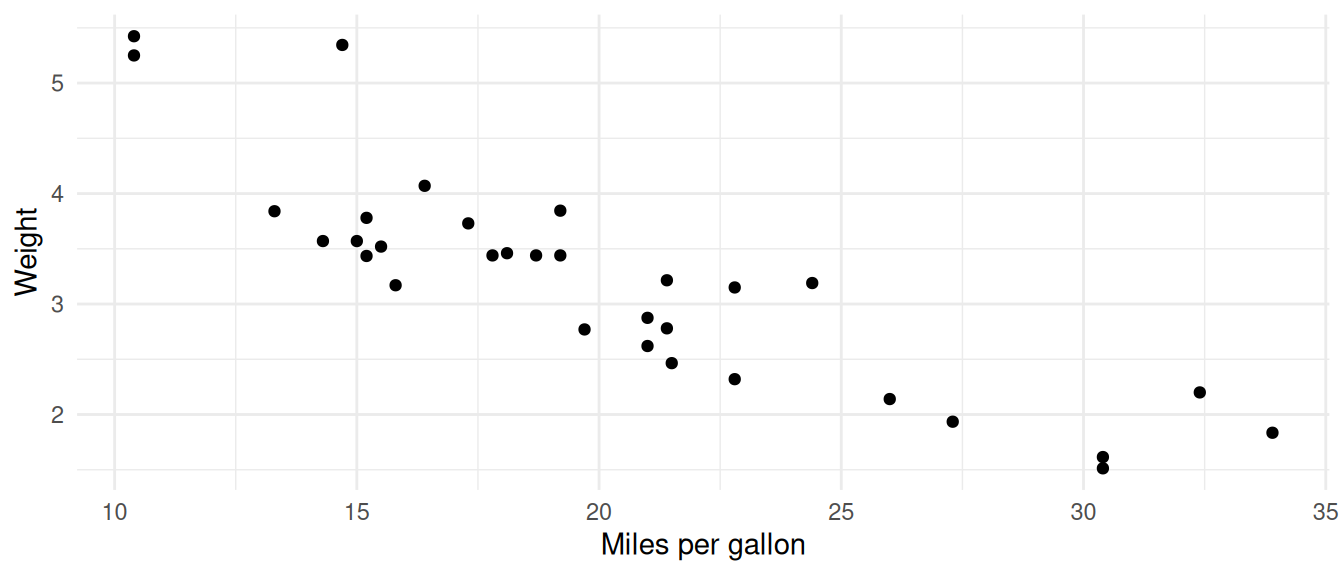

Scatter plot of weight vs miles per gallon

The `patchwork` package

It is often the case that we want to put multiple plots together in a single figure. There are various packages that can be used to do this such as ggarrange, gridExtra, and cowplot. Here we will look at the patchwork package, which provides a very simple and intuitive way to combine ggplots in a grid.

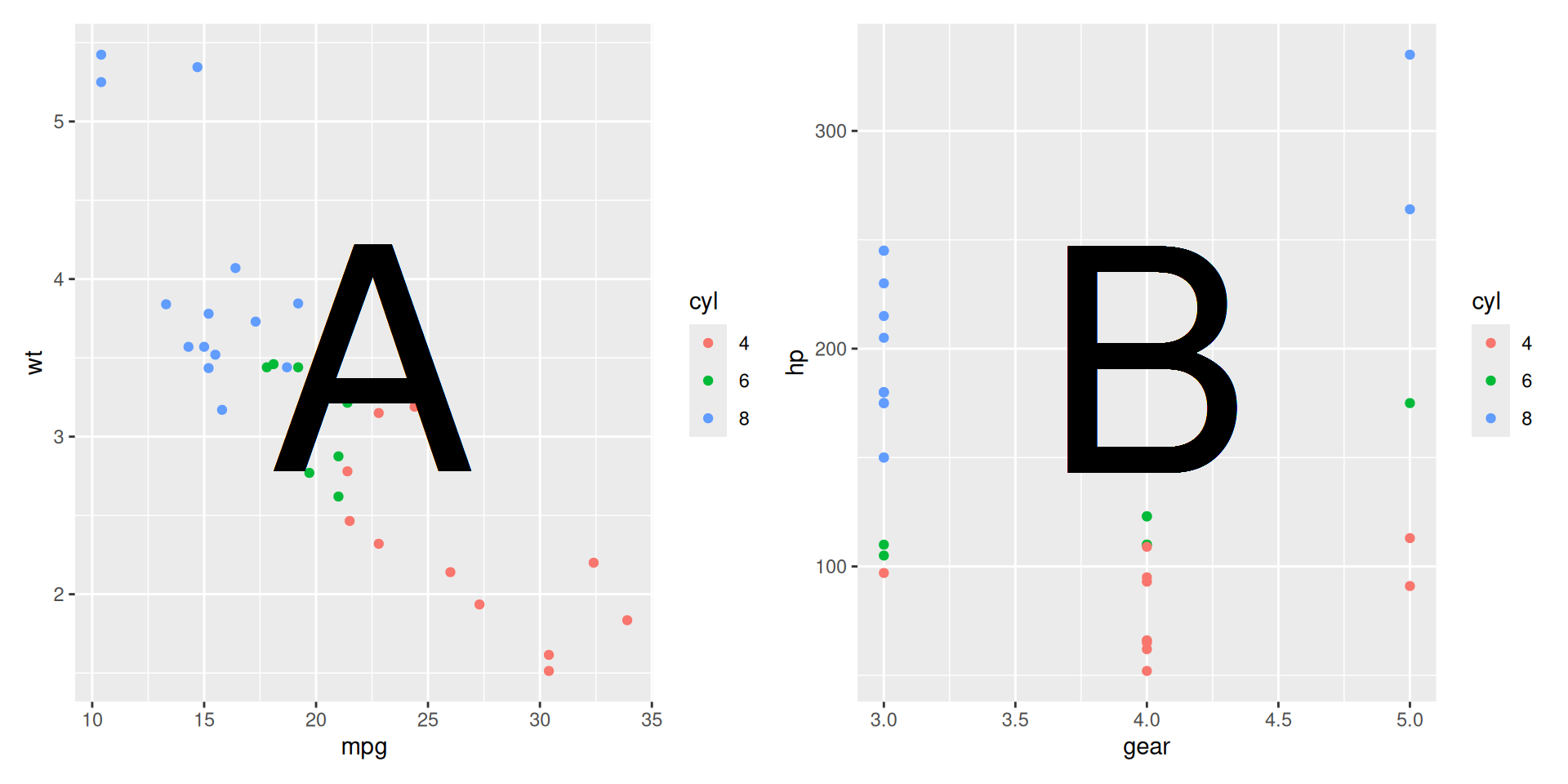

First create each plot and rather than printing them, assign them to a variable. Then we can use the patchwork syntax to combine the plots.

p1 <- mtcars %>%
    mutate(across(cyl, factor)) %>%
    ggplot(aes(x = mpg, y = wt)) +
    geom_point(aes(colour = cyl)) +
    geom_text(label = "A", x = 22.5, y = 3.5, size = 50)
p2 <- mtcars %>%
    mutate(across(cyl, factor)) %>%
    ggplot(aes(x = gear, y = hp)) +
    geom_point(aes(colour = cyl)) +
    geom_text(label = "B", x = 4, y = 195, size = 50)
p1 + p2

patchwork provides a lot of options for combining plots, including + to add plots together, / to stack plots vertically, and | to stack plots horizontally. We can use plot_layout() to control various aspects of the layout, for example we can combine legends when they are the same. We can also use plot_annotation() to add a title and subtitle to the figure (and other annotations).

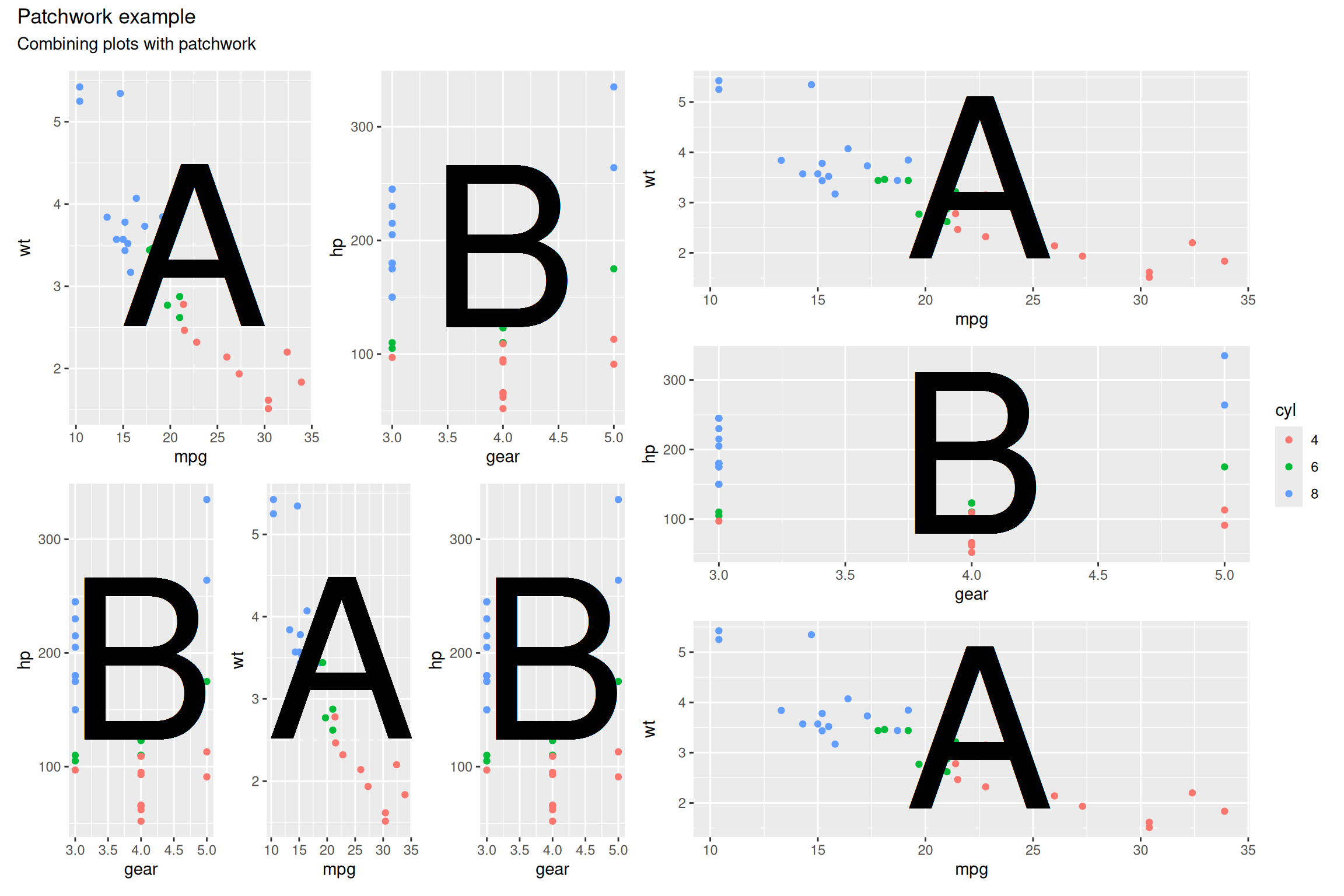

I am going to reuse the same plots a few times just to show you how the layout works.

((p1 + p2) / (p2 + p1 + p2) | (p1 / p2 / p1)) +
    plot_layout(guides = "collect") +
    plot_annotation(title = "Patchwork example",
                    subtitle = "Combining plots with patchwork")

Here I have gathered plots into three plot groups - p1 + p2, p2 + p1 + p1, and p1 / p2 / p1. In the final group I have used the / operator to stack the plots vertically. I have then stacked the first two groups above each other and the third group to the right using the | operator.

The plot_layout() and plot_annotation() can be added to any grouping level so to get them to apply to the whole figure, we put all three groups in brackets to define the whole figure. It can take a bit of getting used to, but once you get the hang of it, it is very simple to create complex figures with many plots.

Extensive documentation is available here.

Inline R code

It is also possible to include R code inline in the markdown. This is done by surrounding the code with single backticks and start it wil r. This is useful if, for example, you want to include a value from a variable in the text. For example:

```{r inline}
six_cyl_mean_mpg <- mtcars %>%
    filter(cyl == 6) %>%
    summarise(mpg = mean(mpg)) %>%
    pull(mpg)
```
The mean mpg of cars with 6 cylinders was **`r six_cyl_mean_mpg`**.

Will be rendered as:

six_cyl_mean_mpg <- mtcars %>%
    filter(cyl == 6) %>%
    summarise(mpg = mean(mpg)) %>%
    pull(mpg)

The mean mpg of cars with 6 cylinders was 19.7428571.

Challenge

Based on the information in this document and in the various links, create a report to match the one here.

I have hidden the code except for the chunk loading the data and the last chunk, which prints the session info. Where the code chunks should be you’ll see:

Code chunk: *some details*

Replace these as necesary with your own code - you may want to refer back to previous sessions.

You may also need to do a bit of searching in function help pages, documentation linked above or on the web generally to figure out some of the code. For example, in the final figure I have added sub-figure labels (a, b, c, d) using patchwork. I couldn’t remember how to do this, so I did a web search for “patchwork figure labels”.

Don’t worry about the grey banner at the top, that is part of this website.

Acknowledgements

This session was developed with reference to materials by Alexia Cardona and the Data Carpentry project.

Session details

It is good practice to include details of the R environment used in the analysis, including the R version, packages used and their version numbers. This can be done at the end of the report. The neatest way to do this is to use the devtools package.

devtools::session_info()

## ─ Session info ───────────────────────────────────────────────────────────────
##  setting  value
##  version  R version 4.5.0 (2025-04-11)
##  os       Ubuntu 24.04.2 LTS
##  system   x86_64, linux-gnu
##  ui       X11
##  language (EN)
##  collate  en_US.UTF-8
##  ctype    en_US.UTF-8
##  tz       Europe/London
##  date     2025-04-25
##  pandoc   3.1.3 @ /usr/bin/ (via rmarkdown)
##  quarto   NA
##
## ─ Packages ───────────────────────────────────────────────────────────────────
##  package     * version date (UTC) lib source
##  bslib         0.9.0   2025-01-30 [1] CRAN (R 4.5.0)
##  cachem        1.1.0   2024-05-16 [1] CRAN (R 4.5.0)
##  cli           3.6.4   2025-02-13 [1] CRAN (R 4.5.0)
##  colorspace    2.1-1   2024-07-26 [1] CRAN (R 4.5.0)
##  crosstalk     1.2.1   2023-11-23 [1] CRAN (R 4.5.0)
##  devtools      2.4.5   2022-10-11 [1] CRAN (R 4.5.0)
##  digest        0.6.37  2024-08-19 [1] CRAN (R 4.5.0)
##  dplyr       * 1.1.4   2023-11-17 [1] CRAN (R 4.5.0)
##  DT          * 0.33    2024-04-04 [1] CRAN (R 4.5.0)
##  ellipsis      0.3.2   2021-04-29 [1] CRAN (R 4.5.0)
##  evaluate      1.0.3   2025-01-10 [1] CRAN (R 4.5.0)
##  farver        2.1.2   2024-05-13 [1] CRAN (R 4.5.0)
##  fastmap       1.2.0   2024-05-15 [1] CRAN (R 4.5.0)
##  forcats     * 1.0.0   2023-01-29 [1] CRAN (R 4.5.0)
##  fs            1.6.6   2025-04-12 [1] CRAN (R 4.5.0)
##  generics      0.1.3   2022-07-05 [1] CRAN (R 4.5.0)
##  ggplot2     * 3.5.2   2025-04-09 [1] CRAN (R 4.5.0)
##  glue          1.8.0   2024-09-30 [1] CRAN (R 4.5.0)
##  gtable        0.3.6   2024-10-25 [1] CRAN (R 4.5.0)
##  hms           1.1.3   2023-03-21 [1] CRAN (R 4.5.0)
##  htmltools     0.5.8.1 2024-04-04 [1] CRAN (R 4.5.0)
##  htmlwidgets   1.6.4   2023-12-06 [1] CRAN (R 4.5.0)
##  httpuv        1.6.16  2025-04-16 [1] CRAN (R 4.5.0)
##  jquerylib     0.1.4   2021-04-26 [1] CRAN (R 4.5.0)
##  jsonlite      2.0.0   2025-03-27 [1] CRAN (R 4.5.0)
##  kableExtra  * 1.4.0   2024-01-24 [1] CRAN (R 4.5.0)
##  knitr       * 1.50    2025-03-16 [1] CRAN (R 4.5.0)
##  labeling      0.4.3   2023-08-29 [1] CRAN (R 4.5.0)
##  later         1.4.2   2025-04-08 [1] CRAN (R 4.5.0)
##  lifecycle     1.0.4   2023-11-07 [1] CRAN (R 4.5.0)
##  lubridate   * 1.9.4   2024-12-08 [1] CRAN (R 4.5.0)
##  magrittr      2.0.3   2022-03-30 [1] CRAN (R 4.5.0)
##  memoise       2.0.1   2021-11-26 [1] CRAN (R 4.5.0)
##  mime          0.13    2025-03-17 [1] CRAN (R 4.5.0)
##  miniUI        0.1.2   2025-04-17 [1] CRAN (R 4.5.0)
##  munsell       0.5.1   2024-04-01 [1] CRAN (R 4.5.0)
##  patchwork   * 1.3.0   2024-09-16 [1] CRAN (R 4.5.0)
##  pillar        1.10.2  2025-04-05 [1] CRAN (R 4.5.0)
##  pkgbuild      1.4.7   2025-03-24 [1] CRAN (R 4.5.0)
##  pkgconfig     2.0.3   2019-09-22 [1] CRAN (R 4.5.0)
##  pkgload       1.4.0   2024-06-28 [1] CRAN (R 4.5.0)
##  profvis       0.4.0   2024-09-20 [1] CRAN (R 4.5.0)
##  promises      1.3.2   2024-11-28 [1] CRAN (R 4.5.0)
##  purrr       * 1.0.4   2025-02-05 [1] CRAN (R 4.5.0)
##  R6            2.6.1   2025-02-15 [1] CRAN (R 4.5.0)
##  Rcpp          1.0.14  2025-01-12 [1] CRAN (R 4.5.0)
##  readr       * 2.1.5   2024-01-10 [1] CRAN (R 4.5.0)
##  remotes       2.5.0   2024-03-17 [1] CRAN (R 4.5.0)
##  rlang         1.1.6   2025-04-11 [1] CRAN (R 4.5.0)
##  rmarkdown     2.29    2024-11-04 [1] CRAN (R 4.5.0)
##  rstudioapi    0.17.1  2024-10-22 [1] CRAN (R 4.5.0)
##  sass          0.4.10  2025-04-11 [1] CRAN (R 4.5.0)
##  scales        1.3.0   2023-11-28 [1] CRAN (R 4.5.0)
##  sessioninfo   1.2.3   2025-02-05 [1] CRAN (R 4.5.0)
##  shiny         1.10.0  2024-12-14 [1] CRAN (R 4.5.0)
##  stringi       1.8.7   2025-03-27 [1] CRAN (R 4.5.0)
##  stringr     * 1.5.1   2023-11-14 [1] CRAN (R 4.5.0)
##  svglite       2.1.3   2023-12-08 [1] CRAN (R 4.5.0)
##  systemfonts   1.2.2   2025-04-04 [1] CRAN (R 4.5.0)
##  tibble      * 3.2.1   2023-03-20 [1] CRAN (R 4.5.0)
##  tidyr       * 1.3.1   2024-01-24 [1] CRAN (R 4.5.0)
##  tidyselect    1.2.1   2024-03-11 [1] CRAN (R 4.5.0)
##  tidyverse   * 2.0.0   2023-02-22 [1] CRAN (R 4.5.0)
##  timechange    0.3.0   2024-01-18 [1] CRAN (R 4.5.0)
##  tzdb          0.5.0   2025-03-15 [1] CRAN (R 4.5.0)
##  urlchecker    1.0.1   2021-11-30 [1] CRAN (R 4.5.0)
##  usethis       3.1.0   2024-11-26 [1] CRAN (R 4.5.0)
##  vctrs         0.6.5   2023-12-01 [1] CRAN (R 4.5.0)
##  viridisLite   0.4.2   2023-05-02 [1] CRAN (R 4.5.0)
##  withr         3.0.2   2024-10-28 [1] CRAN (R 4.5.0)
##  xfun          0.52    2025-04-02 [1] CRAN (R 4.5.0)
##  xml2          1.3.8   2025-03-14 [1] CRAN (R 4.5.0)
##  xtable        1.8-4   2019-04-21 [1] CRAN (R 4.5.0)
##  yaml          2.3.10  2024-07-26 [1] CRAN (R 4.5.0)
##
##  [1] /home/sawle01/R/x86_64-pc-linux-gnu-library/4.5
##  [2] /usr/local/lib/R/site-library
##  [3] /usr/lib/R/site-library
##  [4] /usr/lib/R/library
##  * ── Packages attached to the search path.
##
## ──────────────────────────────────────────────────────────────────────────────

R Markdown

Learning objectives

What is R Markdown?

Packages for this session

Creating an R Markdown document

The basic components of an R Markdown

Header

Markdown sections

Inline text formatting

Headings

Adding a table of contents

Tab sets

Some different formattings

Bold

Italics

Strikethrough

Next section

Line breaks

Lists

Unordered lists

Ordered lists

Links

External links

Internal links to sections

Inserting images

Tables

Blockquotes

Code blocks

R code chunks

Creating code chunks

Running code chunks

Chunk options

Chunk label

The “setup” chunk

A note on the working directory

Tabular output

The kable() function

The kableExtra package

The DT package

Plots

The patchwork package

Inline R code

Challenge

Acknowledgements

Session details

The `kable()` function

The `kableExtra` package

The `DT` package

The `patchwork` package
